Guide IR510 NANO N1 WIFI
Share
- Thermal Sensor: 400x300 17µm
- Spectral Range: 8µm-14µm
- Detection Range: 500m (Human: 1.8mx0.5m), 1300m (Vehicle: 2.3mx2.3m)
- Digital Zoom: 2-4x
- Focus: 19mm (Free)
- Dioptre: ±4
The IR510 Nano Series from Guide incorporates thermal technology, advanced algorithms and innovation into a compact and easy to use device. Features a 400x300 17µm thermal sensor and a LCOS colour display with 50Hz frame rate for smooth & crisp viewing and is capable of detecting a human up to 500m. Users can select from up to five different colour palettes for a more customised experience.

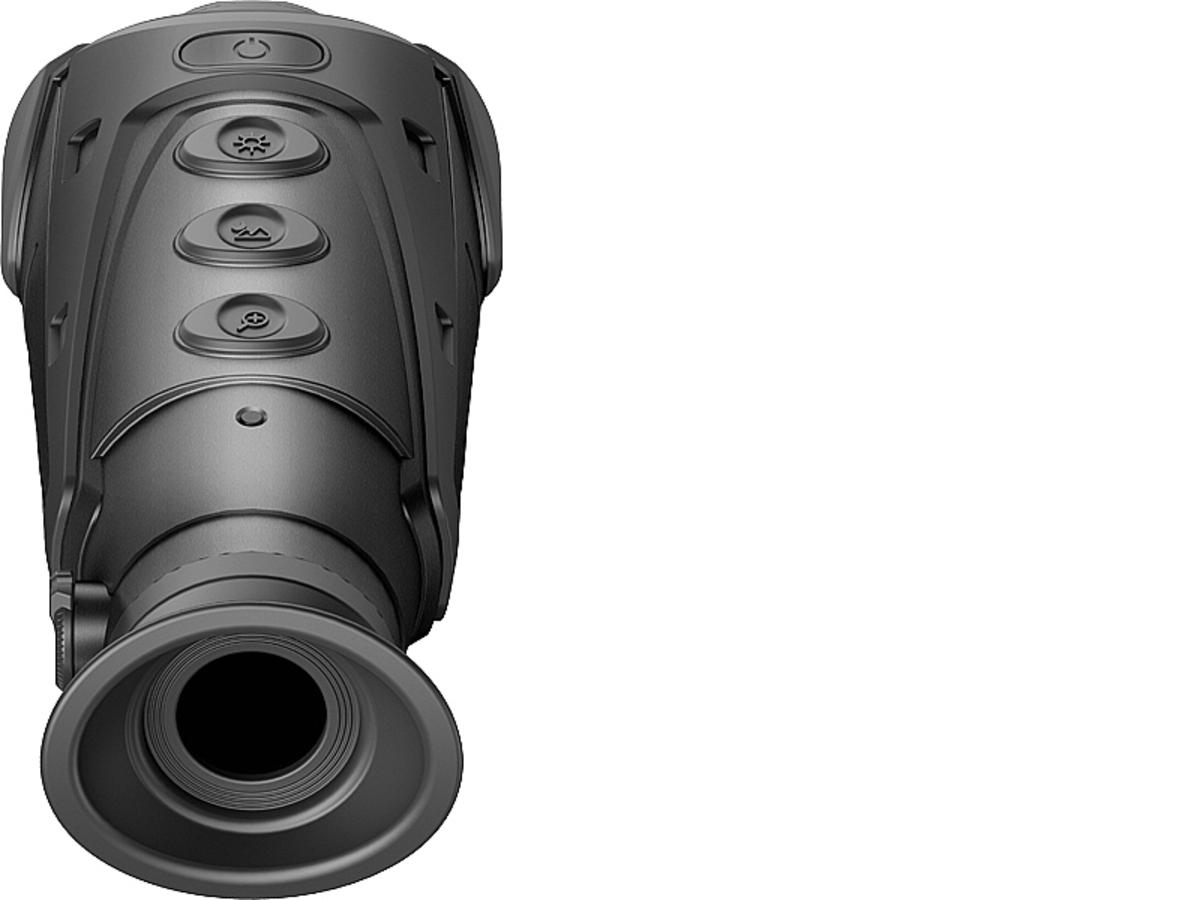

The unit operates silently and is easy to use, featuring four control buttons all of which are placed within the users natural hand-placement for easy reach.
Power is supplied via an internal battery which provides up to 5 hours of operation time and can be recharged via a standard USB cable.
The IR510 Series can connect to smartphones via a dedicated App, allowing the user to remotely operate the unit as well as live view and capture photos & videos.
Specifications
Additional Functions Built-In torch. Cross cursor, Image Enhancement, Wi-Fi, Zoom, Charging indicator And Active indicator
Includes Thermal imager, Power adapter, USB cable, Video cable, lens cap, Wrist strap, Shoulder strap, Soft drawstring bag and User manual
The unit operates silently and is easy to use, featuring four control buttons all of which are placed within the users natural hand-placement for easy reach.
Power is supplied via an internal battery which provides up to 5 hours of operation time and can be recharged via a standard USB cable.
The IR510 Series can connect to smartphones via a dedicated App, allowing the user to remotely operate the unit as well as live view and capture photos & videos.
Specifications
- Thermal Sensor: 400x300 17µm
- Spectral Range: 8µm-14µm
- Detection Range: 500m (Human: 1.8mx0.5m), 1300m (Vehicle: 2.3mx2.3m)
- Digital Zoom: 2-4x
- Focus: 19mm (Free)
- Dioptre: ±4
- Field of View: 19.0° x 14.5°
- Display: 0.2" LCOS Colour
- Colour Palettes: Black hot, white hot, red hot 1, red hot 2, red hot 3
- Frame Rate: 50Hz
- Operating Temperature: -10â to 50â
- Protection: IP66
- Drop Rating: 1m
- Weight: 350g
- Size: 160x67x62mm
- Battery: Internal Li-Ion (3.7v, 3200mAh)
- Operating Time: >5
- Ports: USB (Charging) & MCX Connector (PAL/NTSC)
- Adaptor: Standard USB power adaptor (Max 10w)
Additional Functions Built-In torch. Cross cursor, Image Enhancement, Wi-Fi, Zoom, Charging indicator And Active indicator
Includes Thermal imager, Power adapter, USB cable, Video cable, lens cap, Wrist strap, Shoulder strap, Soft drawstring bag and User manual
-
