Excellent Thermal Optics

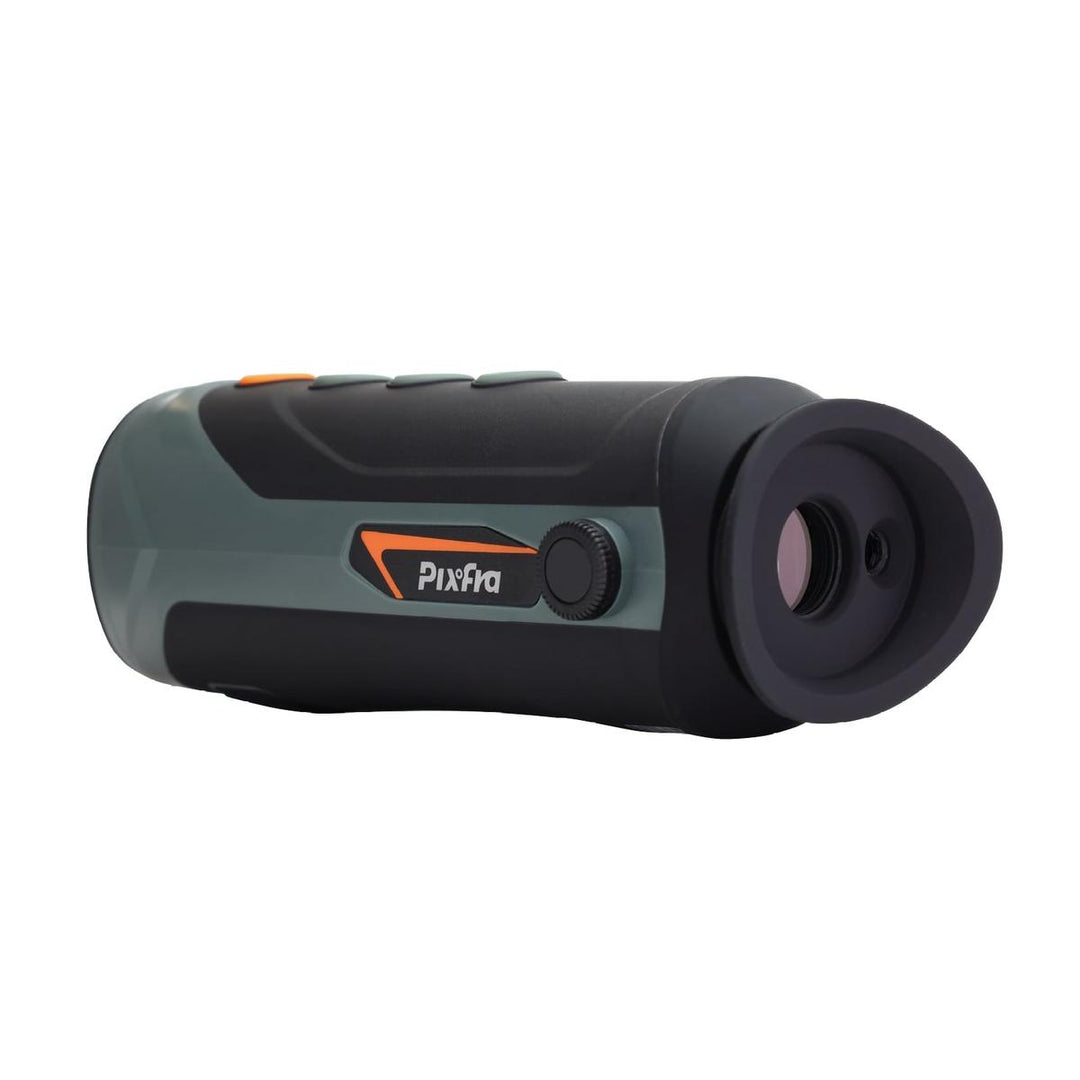

Designed to increase situational awareness both by day and after dark, the Mile M20-B7 can detect human, and animal heat sources with ease, allowing users to stay aware of activity within their observation area. Featuring a 256Ã192, 12µm, <40mK NETD thermal sensor, combined with a 7mm f1.0 objective lens, the Mile M20-B7 will offer a detection range of up to 345m. For greater observation opportunities, this device offers a 24.0°x18.0° field of view and a 0.66x native magnification.
Advanced Image Processing Algorithms
Pixfraâs advanced image processing algorithms work to present a much more vivid thermal picture, ensuring the image displayed on the deviceâs 720Ã540 viewfinder is always crisp and well-defined, providing the user with good identification capabilities.
Adjustable Dioptre
The Mile M20-B7 features adjustable dioptre control, ensuring an image that always remains crystal-clear when viewed through the viewfinder. This control allows the device to be set to match the eyesight of different users, providing a more comfortable, fatigue-free viewing experience.
Stadiametric Rangefinder
A built-in stadiametric rangefinder allows the user to gauge distance measurements between themselves and an observed object. Marking the top and bottom of the observed object will allow the Mile M20-B7 to automatically ascertain the distance between object and user, allowing them to make well-informed decisions out in the field.
9 Hours Battery Life
A built-in rechargeable battery, the Mile M20-B7 will reliably offer an operation time of up to 9 hours (depending on temperature), allowing for extended periods of effective observation before a recharge is needed. The device can even be used with an external power supply to extend the operation time even further.
Colour Palettes
The Mile MB20-B7 offers five different colour palettes: White Hot, Black Hot, Rainbow, Iron Red, and Alarm. Each colour palette is intended to make thermal observation easier in ever-changing conditions, and are designed to enhance the viewing experience and allow the user to adapt accordingly.
Built-In Video Recorder
Capturing every moment during observation is made possible through the Mile M20-B7âs built-in still image and video recording capabilities. Videos and pictures can be stored on a MicroSD card with a capacity of up to 256GB.
Built-In Wi-Fi
A built-in Wi-Fi module allows this device to connect to the Pixfra App (see the APP tab above), meaning users can view whatâs observed through the M20-B7âs lens directly on their connected smartphone. Whatâs more, this device allows for multiple phones to be connected simultaneously, allowing for group observation over several smart devices.
Laser Pointer
A built-on laser pointer is included in order to allow the user to pinpoint specific objects to team members when out in the field. To protect the eyes, the laser pointer automatically disables after 10 seconds of use.
Lightweight & Extremely Durable
Although this device is exceptionally lightweight at less than 350g, it is more than capable of withstanding harsh environmental conditions thanks to its IP67 rating. This rating protects the monocular from dust and water ingress, and a 2m drop test also ensures that the Mile M20-B7 is more than durable enough to resist any bumps or knocks that may occur during observation or transportation. This monocular will even work unaffected in extreme temperature, providing excellent thermal imaging capabilities in -20â â +50â.
- Detector:- Uncooled Vox Focal Plane Array
- Sensor:- 256Ã192, 12µm, <40mK NETD
- Detection Range:- 345m
- Lens:- 7mm f1.0
- Magnification:- 0.66x
- FOV:- 24.0°x18.0°
- Viewfinder:- 720Ã540
- Close Focus Distance:- 1m (3.28ft)
- Fire Detection:- Yes
- Cold/Hot Spot Trace:- Yes
- Wi-Fi:- Yes
- USB Port:- MicroUSB
- Proximity Sensor:- Yes
- Power Supply:- 5 VDC, 0.3A or built-in battery powered
- Operating Time:- â¥9h
- Operating Temperature:- -20â~+50â
- Protection Class:- IP67
- Dimensions:- 170.9Ã57.6Ã58.6mm(L x W x H)
- Weight:- â¤350g
